The Cisco 300-630 exam is aimed at professionals who have a solid understanding of ACI fundamentals and have experience implementing simple ACI solutions. Implementing Cisco Application Centric Infrastructure - Advanced certification exam covers advanced topics such as policy enforcement, application-centric networking, virtualization, and multi-site deployments. A candidate who passes the exam will be able to demonstrate their in-depth knowledge of ACI and their ability to implement and manage complex ACI environments.
NEW QUESTION # 36
What two actions should be taken to deploy a new Cisco ACI Multi-Pod setup? (Choose two.)
- A. Configure anycast RP for the underlying multicast protocol
- B. Increase interface MTU for all IPN routers to support VXLAN traffic
- C. Connect all spines to the IPN
- D. Configure MP-BGP on IPN routers that face the Cisco ACI spines
- E. Configure the TEP pool of the new pod to be routable across the IPN
Answer: B,C
NEW QUESTION # 37
Refer to the exhibit.

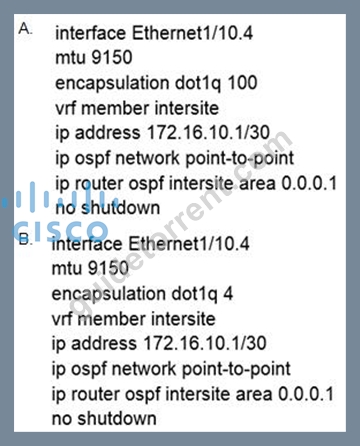

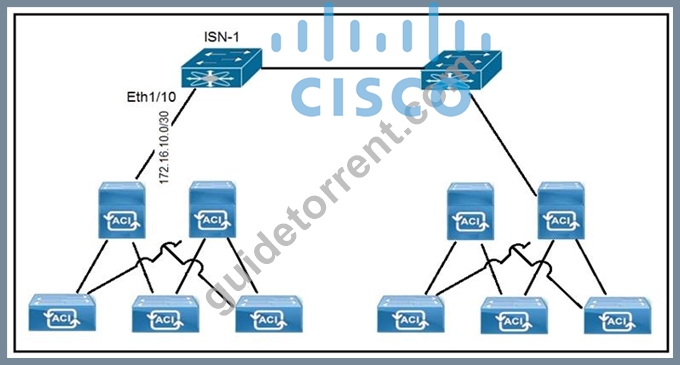

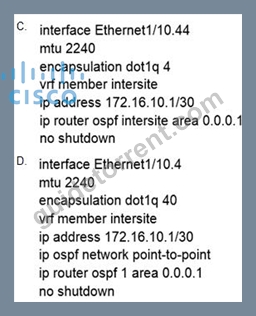

A customer implements Cisco ACI Multi-Site with default MTU settings between two sites. Which configuration should be applied on the interface Eth1/10 on the ISN-1 device?
- A. Option B
- B. Option C
- C. Option D
- D. Option A
Answer: D
NEW QUESTION # 38
Refer to the exhibit.

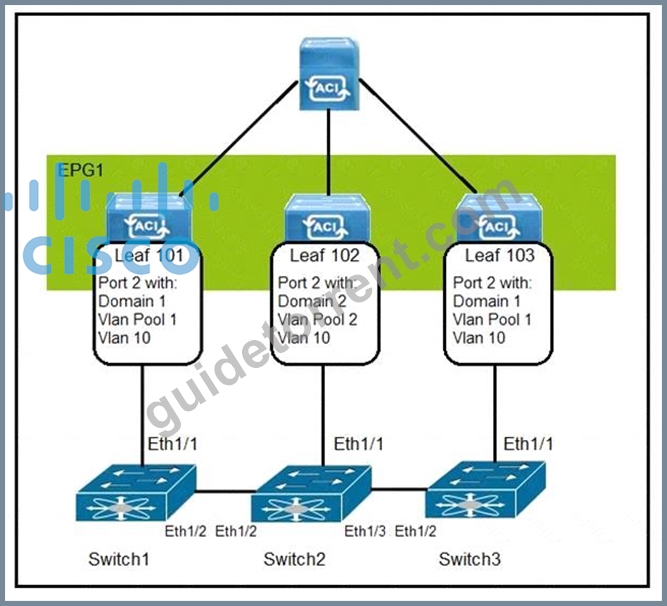

How are the STP BPDUs forwarded over Cisco ACI fabric?
- A. Cisco ACI acts as the STP root for all three external switches.
- B. STP BPDUs that are generated by Switch1 are received only by Switch3.
- C. Cisco ACI fabric drops all STP BPDUs that are generated by the external switches.
- D. STP BPDUs that are generated by Switch2 are received by Switch1 and Switch3.
Answer: C
Explanation:
In a Cisco ACI environment, STP BPDUs are not forwarded across the fabric. The ACI fabric is designed to operate without STP, using a policy-driven, multi-path Ethernet model for loop prevention. Thus, STP BPDUs from external switches are dropped by the ACI leaf switches. References := (Implementing Cisco Application Centric Infrastructure Official Cert Guide)
NEW QUESTION # 39
Leaf 1002 receives a packet from a host attached to Leaf1001. The packet contains the MAC address. IP address, and VRF of the source. Which information does each node learn?
- A. Leaf 1002 learns the VRF of the source.
Leaf1002 learns the IP address of the source. - B. Leaf1001 learns the MAC address of the source.
Leaf1002 learns the IP address of the source. - C. Leaf1001 learns the IP address of the source.
Spine2001 learns the IP address of the source - D. Leaf 1002 learns the IP address of the source.
Spine2001 learns the VRF of the source.
Answer: B
Explanation:
When Leaf 1002 receives a packet from a host attached to Leaf 1001, it learns the MAC address of the source from Leaf 1001. Additionally, Leaf 1002 learns the IP address of the source.
References := Cisco APIC Layer 2 Networking Configuration Guide, Release 5.2(x)
NEW QUESTION # 40

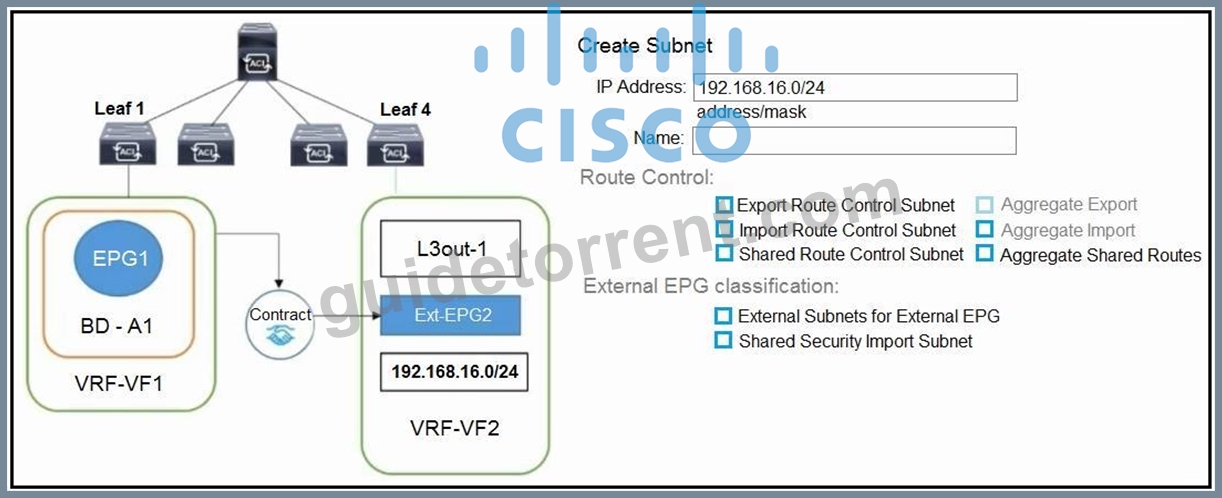

Refer to the exhibit. The external subnet and internal EPG1 must communicate with each other, and the L3Out traffic must leak into the VRF named "VF1". Which configuration set accomplishes these goals?
- A. External Subnets for External EPG
Shared Route Control Subnet
Shared Security Import Subnet - B. Export Route Control Subnet
Shared Security Import Subnet
Aggregate Shared Routes - C. External Subnets for External EPG
Import Route Control Subnet
Shared Route Control Subnet - D. Export Route Control Subnet
Import Route Control Subnet
Aggregate Shared Routes
Answer: A
NEW QUESTION # 41
An engineer must limit local and remote endpoint learning to the bridge domain subnet. Which action should be taken inside the Cisco APIC?
- A. Enable Limit IP Learning to Subnet
- B. Enable Enforce Subnet Check
- C. Disable Endpoint Dataplane Learning
- D. Disable Remote EP Learn
Answer: A
Explanation:
https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric- infrastructure/white-paper-c11-739989.html
NEW QUESTION # 42
Refer to the exhibit.
An engineer extends a Cisco ACI Multi-Pod setup to a Cisco ACI Multi-Site implementation. Which action allows the interconnection?
- A. Use dedicated uplinks on Site 1 spines for ISN connections
- B. Filter the advertisement of the Site 2 TEP pool into the IPN
- C. Connect all spines to the IPN and ISN
- D. Configure BIDIR-PIM in the IPN and ISN
Answer: D
NEW QUESTION # 43
Cisco ACI fabric is migrated from network-centric mode to application-centric mode. What is possible in an application-centric design?
- A. remapping of VLAN pools
- B. creation of additional EPGs under one bridge domain
- C. Cisco ACI VMM integration with hypervisors
- D. migration of bare metal servers to virtual machines
Answer: B
Explanation:
Section: Traditional network with ACI
Explanation/Reference:
NEW QUESTION # 44

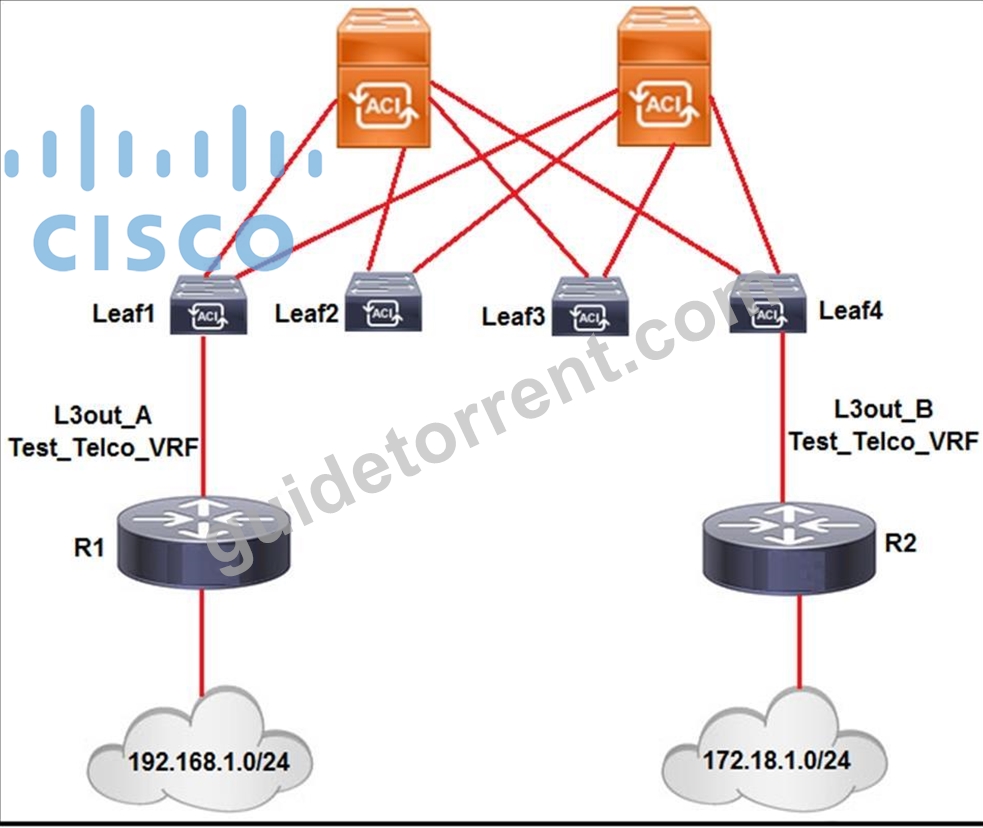

Refer to the exhibit. Which two sets of actions must be taken to permit subnet 192.168.1.0/24 to communicate with subnet 172.18.1.0/24 using Cisco ACI fabric? (Choose two.)
- A. Configure 172.18.1.0/24 with scope Export Route Control subnet under L3out_B.
Configure 192.168.1.0/24 with scope External subnet for external EPG under L3out_A. - B. Configure 192.168.1.0/24 with scope Export Route Control subnet under L3out_B.
Configure 192.168.1.0/24 with scope External subnet for external EPG under L3out_A. - C. Configure 172.18.1.0/24 with scope Export Route Control subnet under L3out_A Configure 172.18.1.0/24 with scope External subnet for external EPG under L3out_B.
- D. Configure 172.18.1.0/24 with scope External subnet for external EPG under L3out_A.
Configure 192.168.1.0/24 with scope External subnet for external EPG under L3out_B. - E. Configure 192.168.1.0/24 with scope Export Route Control subnet under L3out_A.
Configure 172.18.1.0/24 with scope External subnet for external EPG under L3out_ B.
Answer: B,D
NEW QUESTION # 45
Which protocol must be applied between the inter-pod network and spines within each pod to allow broadcast traffic replication between Cisco ACI pods?
- A. MSDP Peering
- B. Bidirectional PIM
- C. Multicast BGP
- D. IGMP Registration
Answer: B
Explanation:
Bidirectional Protocol Independent Multicast (Bidirectional PIM) is used between the inter-pod network (IPN) and spines within each pod in a Cisco ACI environment to allow broadcast traffic replication between pods.
This protocol is designed to efficiently route multicast traffic in scenarios where the same data is being sent to multiple receivers, which aligns with the need for broadcast traffic replication in an interconnected multi-pod ACI architecture. References := ( Implementing Cisco Application Centric Infrastructure Official Cert Guide )
NEW QUESTION # 46
What two actions should be taken to deploy a new Cisco ACI Multi-Pod setup? (Choose two.)
- A. Configure anycast RP for the underlying multicast protocol
- B. Increase interface MTU for all IPN routers to support VXLAN traffic
- C. Configure the TEP pool of the new pod to be routable across the IPN
- D. Configure MP-BGP on IPN routers that face the Cisco ACI spines
- E. Connect all spines to the IPN
Answer: B,C
NEW QUESTION # 47
What are two characteristics of network-centric design in Cisco ACI? (Choose two.)
- A. A bridge domain has one subnet and one EPG
- B. EPGs are used for microsegmentation
- C. Applications define the network requirements
- D. There is open communication between EPGs
- E. EPGs are different security zones
Answer: A,D
NEW QUESTION # 48

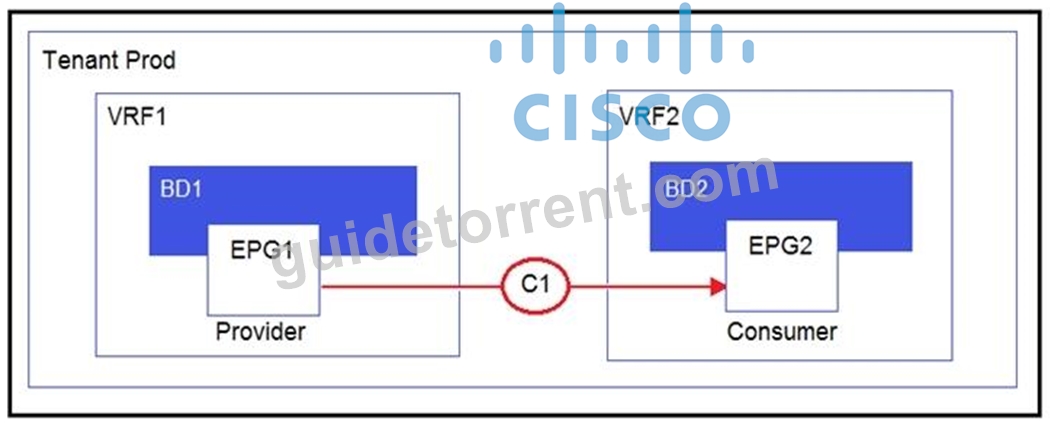

Refer to the exhibit. Which two configurations enable inter-VRF communication? (Choose two.)
- A. Enable Advertise Externally under the subnet scope
- B. Set the subnet scope to Shared Between VRFs
- C. Export the contract and import as a contract interface
- D. Change the subject scope to VRF
- E. Change the contract scope to Tenant
Answer: B,E
NEW QUESTION # 49
Refer to the exhibit.

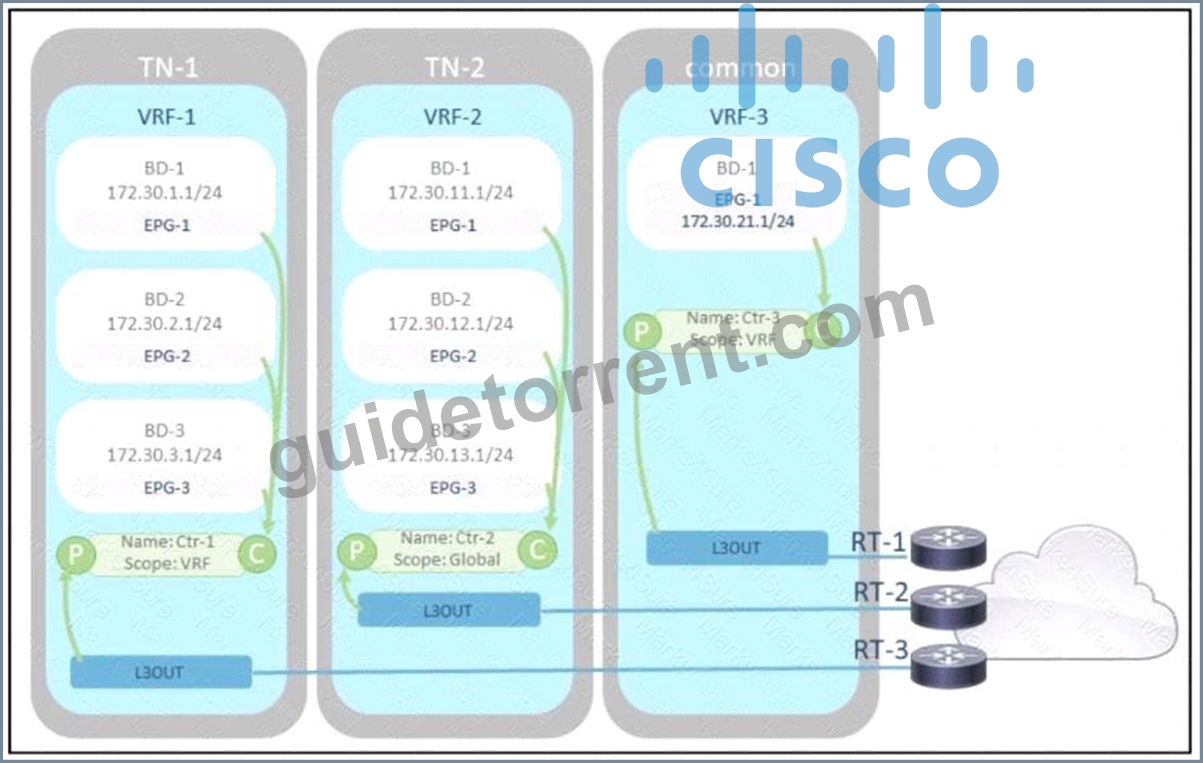

A company decided to decrease its routing footprint and remove RT-2 and RT-3 devices from its data center.
Because of that, the exit point must be created from all the tenants by using the common tenant.
Which two configuration tasks must be completed to meet these requirements? {Choose two.)
- A. Change contract Ctr-3 scope to Global, consume it by all EPGs. and flag all subnets with flag Shared between VRFs.
- B. Mark all subnets with flag Shared between VRFs and attach contract Ctr-3 as a provider to all the EPGs.
- C. Move subnets from all the bridge domains to the EPG level and mark them with flag Shared between VRFs.
- D. Export contract Clr-2 into (he tenant TN-1 and attach it as a consumer to all the EPGs in the tenant TN-1.
- E. Update the L3Qut ExtEPG subnet in the common tenant with flag Shared Route Control Subnet and Aggregate Shared Routes.
Answer: A,E
NEW QUESTION # 50
What is a design implication for Cisco ACI using an application-centric approach?
- A. One VLAN equals one EPG equals one bridge domain
- B. Multiple VLANs and/or multiple EPGs are under one bridge domain
- C. VLAN numbers are in the names of the bridge domain and EPG objects
- D. One EPG is mapped to multiple bridge domains
Answer: B
NEW QUESTION # 51
An organization migrates its virtualized servers from a legacy environment to Cisco ACI. VM1 is incorrectly attached to PortGroup IT|3TierApp|Web. Which action limits IP address learning in BD1?
- A. Enable Enforce Subnet Check
- B. Disable Remote EP Learn
- C. Enable GARP-based EP Move Detection Mode
- D. Enable Rouge Endpoint Control
Answer: C
NEW QUESTION # 52
......
Cisco 300-630 exam is recommended for IT professionals who have experience in implementing and managing Cisco ACI solutions. Implementing Cisco Application Centric Infrastructure - Advanced certification is ideal for network architects, engineers, and administrators who want to validate their skills and expertise in configuring and troubleshooting complex ACI networks. Implementing Cisco Application Centric Infrastructure - Advanced certification has become increasingly popular as more organizations are adopting ACI solutions to manage their networks efficiently and securely.
